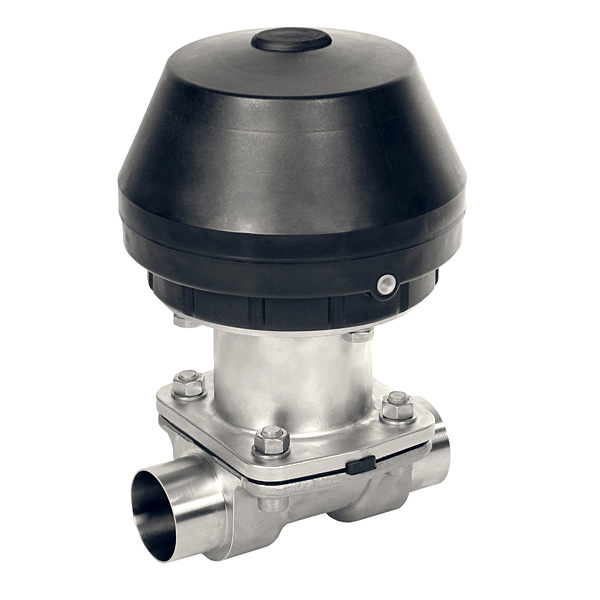

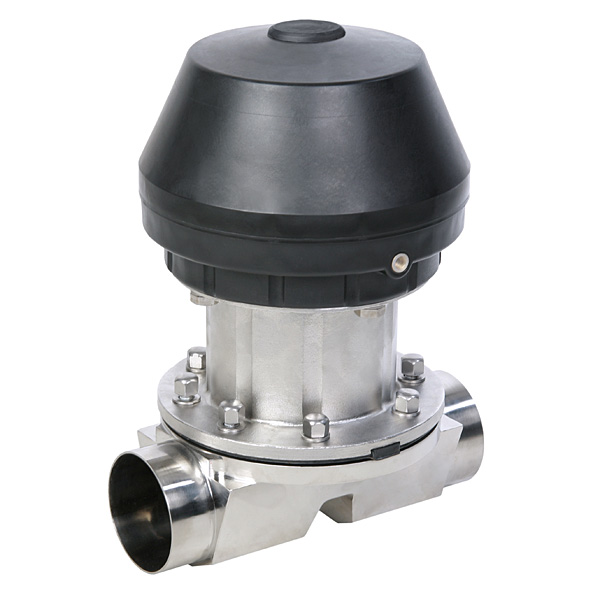

SED – KMA 495 pneumatic diaphragm valve DN 15-100 mm

Pneumatic operated valve with stainless steel bonnet and plastic actuator

SED-KMA 495 Pneumatic Diaphragm Valve
SED-KMA 495 Pneumatic Diaphragm Valve
RX Code: MBV

The SED-Samson diaphragm valve Type 495 is designed for aseptic applications, ensuring sterile processing in industries like pharmaceuticals and biotechnology.
Its compact and modular design allows for easy integration and maintenance. The valve features a smooth, cavity-free internal surface to prevent contamination and facilitate efficient cleaning.

Voordelen

  • Direction of control air connection is mountable in 90° rotations
  • Leck detection port
  • CDSA sealing concept

Specificaties

  • Size: 3/4″ – 4″
  • Max pressure: check data sheet
  • Standard material: 1.4435
  • Temp range: -20 °C to 160 °C
  • Connection: tri-clamp / orbital welding
  • Diaphragm size: MA 25, 40, 50, 80, 100
Voeg toe aan Offerte
Brand: SED

    This product comes in a variety of options.

    Just send your request here. Our sales team will connect with you about all the product details and options available.

    [datasheet_pdf_thumbnail]

    Standard certificates



    Optional certificates

    You can contact us or ask for your Optional Certificate in your quotation.

    No brochures are available at the moment.
