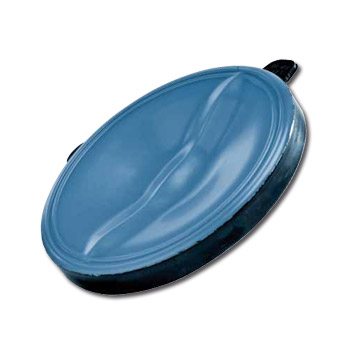

SISTO C- Diaphragm -TFM/EPDM-bonded

Spare diaphragm for SISTO C valve

RX Code: MCX

The SISTO elastomer diaphragms bonded with TFM are made of an FDA compatible EPDM rubber which is firmly bonded to a TFM film featuring improved mechanical properties and lower permeability compared with conventional PTFE. The material quality of the EPDM and the TFM films complies with the specifications of FDA, EU1935, and USP. The TFM’s excellent chemical and thermal properties make this diaphragm type the first choice for applications with chemically aggressive, as well as high temperatures.
For determining the diaphragm you need, please refer to the Datasheet.

Specificaties

  • Material: TFM-EPDM
  • Sizes: DN10 to DN50
  • Temp. range low: -20℃
  • Temp. range max: +120℃ long-term / +140℃ short-term
Voeg toe aan Offerte
Brand: SISTO

All Variations

RX CODEPart DescriptionSizeConnectionHoeveelheidAdd to Quote
RX CODE: MCX115-O-U-T--Diaphragm TFM/EPDM boundedMD115Thread
RX CODE: MCX092-O-U-T--Diaphragm TFM/EPDM boundedMD92Thread
RX CODE: MCX065-O-U-T--Diaphragm TFM/EPDM boundedMD65Thread
RX CODE: MCX040-O-U-T--Diaphragm TFM/EPDM boundedMD40Thread
RX CODE: MCX030-O-U-T--Diaphragm TFM/EPDM boundedMD30Thread
