GOETZE – Type 400 Safety valve

RX Code: VGE

Stainless steel safety valves with tri-clamp connections

Voordelen

  • Includes smooth
  • Fault-free and optimal surfaces for cleaning
  • EU type examination

Vragen?

Cheung Lau

Email: info@romynox.nl
Tel: +31 85 043 3134

    This product comes in a variety of options.

    Just send your request here. Our sales team will connect with you about all the product details and options available.

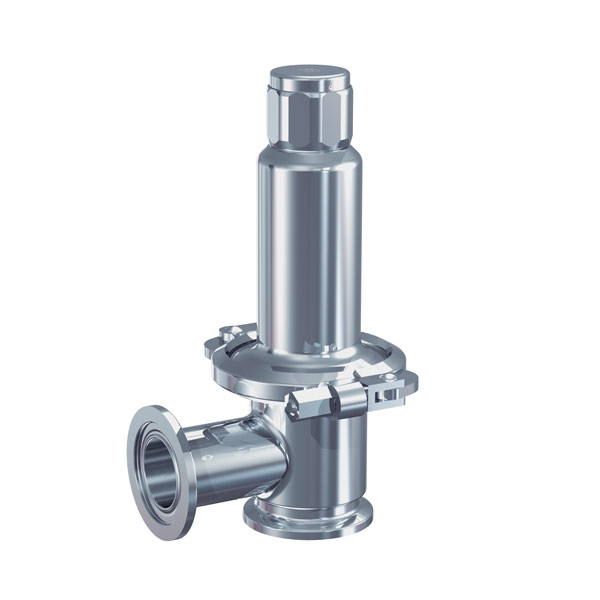

    400 Goetze safety valve is suitable for liquids, air, gases, vapours and steam. The valves have got minimal dead space in the inlet area and a polished surface for product wetted parts, making them appropriate for the standards of pharmaceutical processes.

    Pharmaceutical processes : The shape of the valve body avoids forming of puddles in the valve after it has opened. It is possible to carry-out CIP/SIP by lifting the disc from the seat. SF1 or SF4 finish is the standard.

    Read more about Brand: GOETZE

    SizesDN 20 – DN 32
    Temp. reach-40°C to 200°C
    Pressure reach0,4 – 16 bar
    ConnectionTri-clamp
    Material
    • Body: 316L (1.4435)
    • Inner parts, wetted: 316L (1.4435)
    • Upper section, other inner parts: 316L (1.4404)
    • Spring: 302 (1.4310)
    • Bellows: 316 Ti (1.4571)
    Surface roughness standardSF1, 0,5um
    Certificates (standard)3.1 material, FDA, USP Class VI
