Diaphragm Gemü style

RX Code: MGX

Diaphragm Direct Gemu Style Complete Range of EPDM & PTFE/EPDM

Benefits

Material variatiion:

  • EPDM

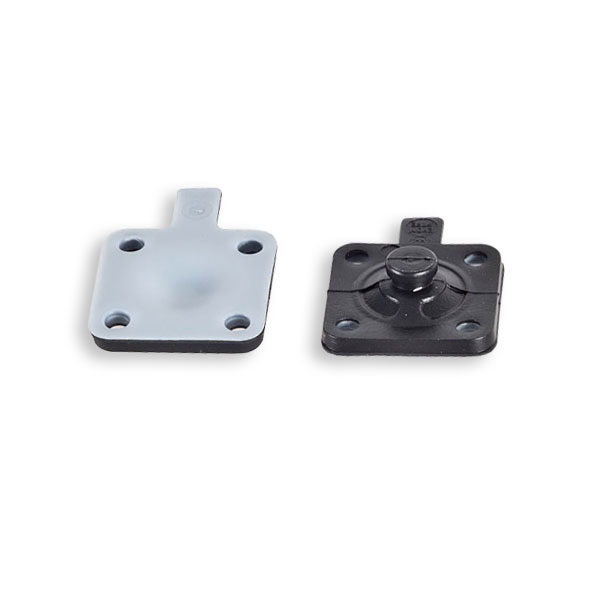

  • PTFE backed EPDM Diaphragms (2-piece center-laminate)
  • PTFE laminate on EPDM

Questions?

Cheung Lau

Email: info@romynox.nl
Tel: +31 85 043 3134

All Variations

RX CodeSizeMaterialOEMOEM Code 1QuantityAdd to Quote
RX Code: MGX-03-O-E-N--1/2EPDMDD03-GE760008-M17
RX Code: MGX-001/2EPDMDD03-GE7-D60008-M17D
RX Code: MGX-03-O-U-N--1/2PTFE/EPDMDD03-GTFML60008-M52
RX Code: MGX-00-1/2PTFE/EPDMDD03-GTFML-D60008-M52D
RX Code: MGX-07-O-E-T--3/4EPDMDD07-GE760010-M17
RX Code: MGX-00--3/4EPDMDD07-GE7-D60010-M17D
RX Code: MGX-07-O-U-T--3/4PTFE/EPDMDD07-GTFML60010-M52
RX Code: MGX-00---3/4PTFE/EPDMDD07-GTFML-D60010-M52D
RX Code: MGX-07-O-ERT--3/4EPDMDD07-GTFML-WR-
RX Code: MGX-10-C-Q-T--1PTFE/EPDMDD10-GTFM-E600025-M-5E
RX Code: MGX-011PTFE/EPDMDD10-GTFM-FPM600025-M-5F
RX Code: MGX-10-O-E-T--1EPDMDD10-GE760025-M17
RX Code: MGX-01-1EPDMDD10-GE7-D60025-M17D
RX Code: MGX-10-O-Q-T--1PTFE/EPDMDD10-GTFM60025-M52
RX Code: MGX-01--1PTFE/EPDMDD10-GTFM-D60025-M52D
RX Code: MGX-15-O-E-T--1.1/2EPDMDD15-GE7600040-M17
RX Code: MGX-15-O-Q-T--1.1/2PTFE/EPDMDD15-GTFM600040-M-52
RX Code: MGX-15-C-Q-T--1.1/2PTFE/EPDMDD15-GTFM-E600040-M-5E
RX Code: MGX-01---1.1/2PTFE/EPDMDD15-GTFM-FPM600040-M-5F
RX Code: MGX-022PTFE/EPDMDD20-GTFM-FPM600050-M-5F
RX Code: MGX-20-C-Q-T--2PTFE/EPDMDD20-GTFM-E600050-M-5E
RX Code: MGX-20-O-Q-T--2PTFE/EPDMDD20-GTFM600050-M-52
RX Code: MGX-20-O-E-T--2EPDMDD20-GE7600050-M17
RX Code: MGX-30-C-Q-T--3 x 2.1/2PTFE/EPDMDD30-GTFM-E600080-M-5E
RX Code: MGX-30-O-Q-T--3 x 2.1/2PTFE/EPDMDD30-GTFM600080-M-52
RX Code: MGX-30-O-E-T--3 x 2.1/2EPDMDD30-GE7600080-M17
RX Code: MGX-02-3 x 2.1/2PTFE/EPDMDD30-GTFM-FPM600080-M-5F
RX Code: MGX-40-O-E-T--4EPDMDD40-SE7600100-M17
RX Code: MGX-40-O-Q-T--4PTFE/EPDMDD40-GTFM600100-M-52

Labeled with the brand name Diaphragm Direct, Romynox offers a complete range of diaphragms for valves of Gebrüder Müller Apparatebau GmbH & Co., KG, and/or Gemü Valves, Inc. Both EPDM, laminated and 2-pieces EPDM / PTFE versions are available from stock. These diaphragms of high quality are produced in Germany.

Diaphragm Direct® does not manufacture, represent, nor sell OEM valves or diaphragms manufactured by any other company; ie. (ITT Manufacturing Enterprises, Inc.; Crane Process Flow Technologies Ltd.; Gebruder Muller Apparatebau GmbH & Co., KG and/or Gemü Valves, Inc.; Georg Fischer Aktiengesellschaft Corporation; Bürkert Werke GmbH & Co. KG Ltd, SED Flow Control GmbH, Swagelok Company, G.S. Anderson GmbH, or Top Line Process Equipment Co., Asepco / Watson Marlow, Inc. (a Spirax-Sarco Engineering plc company) etc.

Diaphragm Direct® brand diaphragms are not sponsored by any other manufacturers. Any name, model, part number, brand, image, material or referral is for descriptive purposes only.

Diaphragm Direct® brand replacement diaphragms are guaranteed to fit OEM equipment and meet or exceed OEM specifications. Diaphragm Direct® brand replacement diaphragms are covered by the standard Diaphragm Direct® limited product warranty.

To Download Diaphragm Drawings please check the table

SizeMaterialOEM CODEDrawing
1/2″EPDMDD03-GE7DD03-GE7
1/2″EPDMDD03-GE7-D
1/2″PTFE/EPDMDD03-GTFMLDD03-GTFML
1/2″PTFE/EPDMDD03-GTFML-D
3/4″EPDMDD07-GE7DD07-GE7
3/4″EPDMDD07-GE7-D
3/4″PTFE/EPDMDD07-GTFMLDD07-GTFML
3/4″PTFE/EPDMDD07-GTFML-D
3/4″EPDMDD07-GTFML-WRDD07-GTFML-WR
1″PTFE/EPDMDD10-GTFM-EDD10-GTFM-E
1″PTFE/EPDMDD10-GTFM-FPMDD10-GTFM-FPM
1″EPDMDD10-GE7DD10-GE7
1″EPDMDD10-GE7-D
1″PTFE/EPDMDD10-GTFMDD10-GTFM
1″PTFE/EPDMDD10-GTFM-D
1.1/2″EPDMDD15-GE7DD15-GE7
1.1/2″PTFE/EPDMDD15-GTFMDD15-GTFM
1.1/2″PTFE/EPDMDD15-GTFM-EDD15-GTFM-E
1.1/2″PTFE/EPDMDD15-GTFM-FPMDD15-GTFM-FPM
2″EPDMDD20-GE7DD20-GE7
2″PTFE/EPDMDD20-GTFMDD20-GTFM
2″PTFE/EPDMDD20-GTFM-EDD20-GTFM-E
2″PTFE/EPDMDD20-GTFM-FPMDD20-GTFM-FPM
3″ -2.1/2″PTFE/EPDMDD30-GTFM-FPMDD30-GTFM-FPM
3″ -2.1/2″EPDMDD30-GE7DD30-GE7
3″ -2.1/2″PTFE/EPDMDD30-GTFMDD30-GTFM
3″ -2.1/2″PTFE/EPDMDD30-GTFM-EDD30-GTFM-E
4″PTFE/EPDMDD40-GTFMDD40-GTFM
4″EPDMDD40-SE7DD40-SE7

Read more about Brand: DIAPHRAGM DIRECT / GEMÜ-STYLE

Sizes1/2″ to 4″
Temp. range-34°C to 176°C for PTFE/EPDM  and -30°C to 140°C for EPDM
ConnectionsThreaded Pin & Button
MaterialPTFE backed EPDM Diaphragm (2-piece center-laminate)  AND  EPDM
TraceerbaarheidFull batch traceable according to EN10204 3.1b, and ISO 10993-1
CertificatesUSP Class VI, 3.1, FDA
