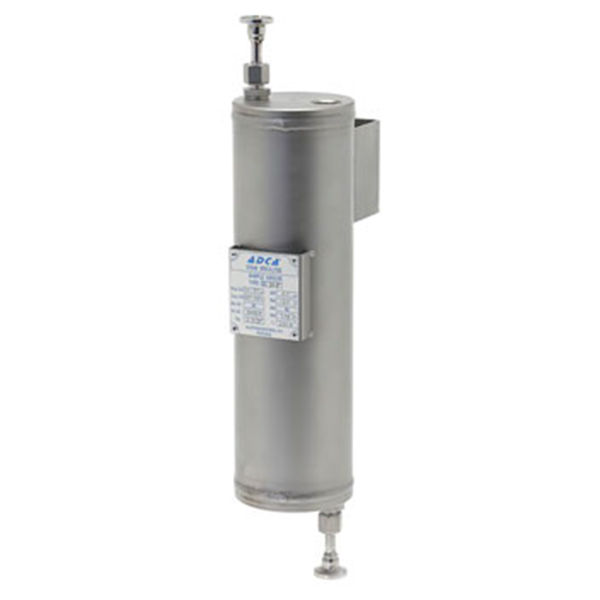

ADCA- Sample coolers SC32P and SC32PP
Sample cooler with a helical-coil heat exchanger
The ADCAPure SC32P sample cooler consists in a helical-coil heat exchanger used to take samples quickly and safely from steam generators, clean or pure steam systems, WFI and other high purity mediums. Its spiral design saves significant space without compromise and a counter current flow path maximizes heat transfer and consequently cooling efficiency. The vertical sampling side ensures self drainability, as medium flows naturally by gravity to the sample outlet with no chance to remain inside.
Benefits
|
Specification
|
Brand: ADCA PURE
All Variations
| RX Code | Clean Connection | Cooling Connection | Installation | Total Length | OEM | Quantity | Add to Quote |
|---|---|---|---|---|---|---|---|
| RX Code: JAC-23072601-A | 1/2" tri-clamp | 1/2" BSP | Fixed | 420mm | -- | ||
| RX Code: JAC05CC305J5-- | 1/2" tri-clamp | 1/2" BSP | Fixed | 500mm | A.64.6422.080+BSP | ||
| RX Code: JAC05CC307C5-- | 1/2" tri-clamp | 3/4" tri-clamp | Fixed | 500mm | A.64.6422.080+TC 3/4 | ||
| RX Code: JAD05CC307C5-- | 1/2" tri-clamp | 3/4" tri-clamp | Portable | 684mm | A.64.6430.080+TC 3/4 |
[datasheet_pdf_thumbnail]
Standard certificates
Optional certificates
You can contact us or ask for your Optional Certificate in your quotation.
No brochures are available at the moment.
